HGR Linear Guide
HGR linear guide are precision linear motion components designed to provide smooth, accurate, and reliable movement under high loads, featuring high interchangeability, durable steel construction, and long service life for CNC and industrial applications.
Product Introduction
The HGR linear guide is engineered for high interchangeability, allowing easy replacement with compatible guide rail systems. Each guide rail and slider is precisely manufactured to ensure reliable compatibility and stable performance in practical applications.Made from high-quality steel and treated with advanced surface processes, the HGR linear guide offers excellent strength and durability for demanding operating conditions. Its robust construction supports long service life and low failure rates, delivering a cost-effective linear motion solution.Under high loads, the HGR linear guide maintains smooth operation and consistent positioning accuracy. Multiple sizes and configurations are available to meet different application requirements, and customers are welcome to contact us for further cooperation.

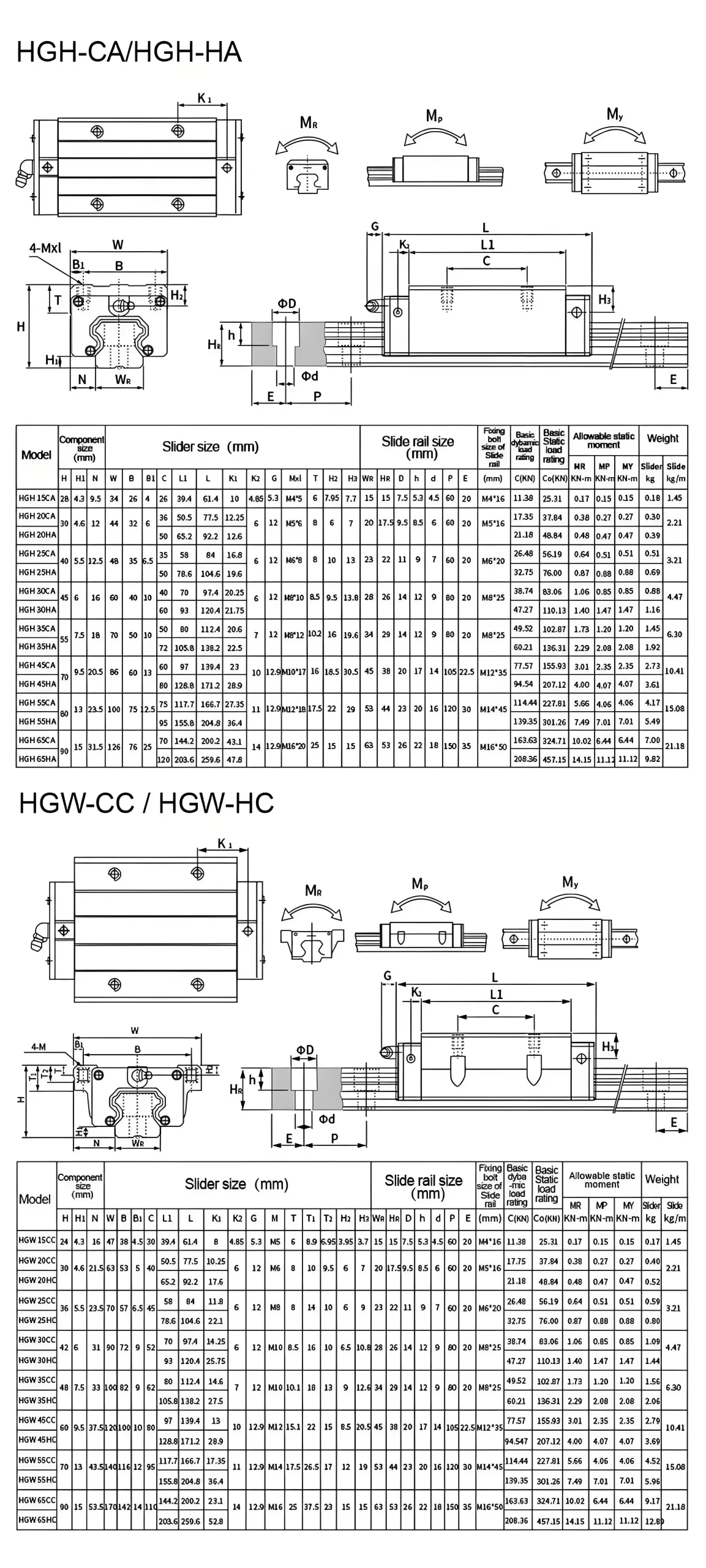

Product Specification
| Item | Details | Item | Details |
| Machinery Test Report | Provided | Video Outgoing Inspection | Provided |
| Material | Aluminum + Stainless Steel | Model Number | Customizable |
| Warranty | 1.5 Years | Core Components | Bearing |
| Brand Name | LQ | Weight (kg) | 0 |
| Place of Origin | Shandong, China | Product Name | Linear Guides |
| Type | Linear Motion Guideway | Application | CNC Machining Parts |
| Performance | High Running Performance | Feature | High Accuracy |
| Structure | Slide Rail + Slide Block | Color | Silver |
| Model | Customizable | Brand | LONGQIAO |
Product Features
High efficiency
The HGR linear guide adopts a ball-type rolling structure that enables smooth and responsive linear movement. This design allows motion commands to be transmitted efficiently, helping improve overall transmission performance during operation.
High wear resistance
Manufactured from high-quality steel and treated with advanced surface processes, the HGR linear guide offers excellent resistance to wear. Its durable construction supports long-term use while maintaining stable performance and a low damage rate.
High rigidity under load
Designed for demanding working conditions, the HGR linear guide maintains structural stability under heavy loads. The robust material and precise manufacturing help ensure reliable operation without distortion during continuous use.
High precision
Using three-sided grinding technology, the HGR linear guide achieves accurate dimensions and consistent quality. This ensures reliable positioning accuracy and stable repeatability in practical linear motion applications.
Low friction coefficient
The ball-type rolling elements reduce friction during movement, enabling smooth operation with minimal resistance. This structure also helps lower heat buildup and noise, contributing to stable and efficient performance.
Product Application
Modern industrial and automation equipment places high demands on motion accuracy, stability, and long-term reliability. In many precision-driven systems, linear motion components play a critical role in ensuring consistent positioning and smooth operation under continuous workloads. As equipment performance requirements continue to increase, reliable linear guidance solutions have become essential across various mechanical and automation fields.

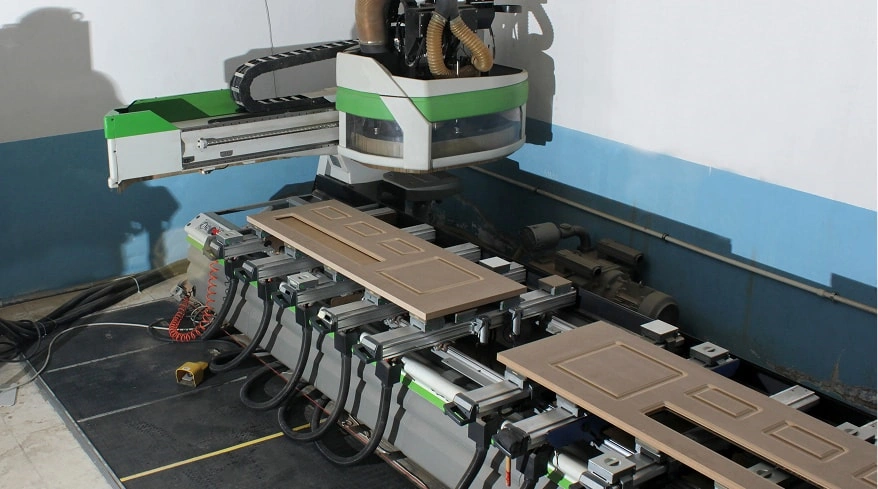

HGR linear guides are widely used in CNC machines, automation systems, and industrial equipment that require accurate linear motion and stable load support. Thanks to their high interchangeability, durable steel construction, and ball-type rolling structure, HGR linear guides deliver smooth movement, low friction, and consistent precision even under high loads. These characteristics make them well suited for both new equipment design and system upgrades, helping improve operational stability and long-term performance.
-
Precise & Stable Linear Guidance -
Low-Friction Linear Motion -
Stable Quality & Accurate Dimensions -
Smoother motion with low friction
Packing, Storage, Handling and Transportation
Precision electronic machinery refers to various types of high-tech equipment, such as semiconductor devices and scientific instruments. These sophisticated machines demand a high level of precision in their design, construction and operation, making them critical tools in many advanced industries. The use of precision electronic machinery has revolutionized many fields, enabling greater accuracy and efficiency in everything from medical research to manufacturing. As technology continues to advance, the demand for precision electronic machinery will only continue to grow.
Linear guides are an incredibly versatile component that can be incorporated into a wide range of automation equipment, including textile machinery, printing machinery, drug dispensers, and physical therapy machines. Additionally, they can be found in blood testing equipment, airway cleaning equipment, and other similar devices. Because of their high level of precision and reliability, linear guides are an ideal choice for these types of applications, helping to ensure that everything runs smoothly and efficiently. Whether you are looking to automate a new piece of equipment or upgrade an existing one, incorporating HGR linear guides is a smart choice that will pay off in the long run.
-

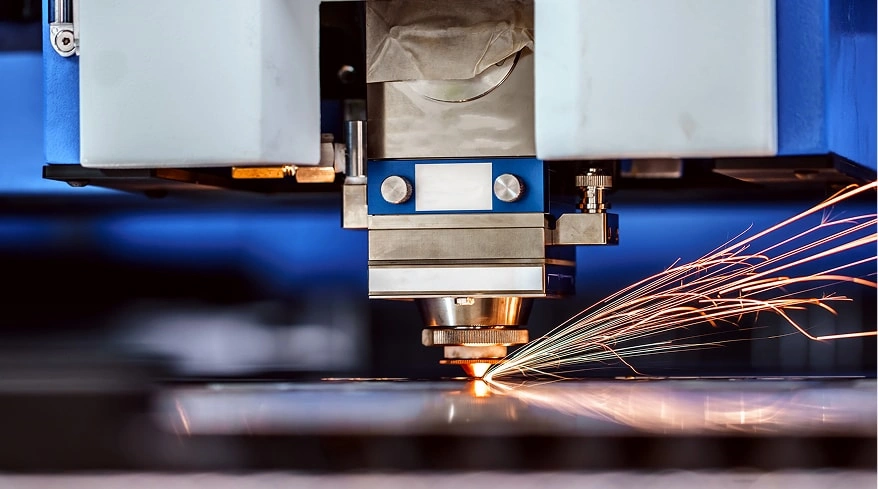

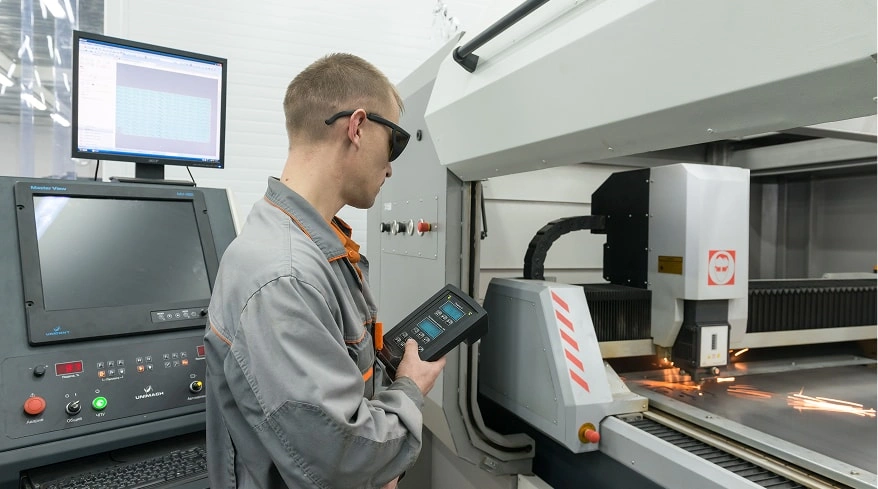

Laser Engraving & Cutting Machines -
Smoother motion with low friction
