Many CNC machines fail to achieve clean cutting, smooth engraving, or stable machining because the spindle motor lacks speed stability or torque control. This leads to vibration, tool wear, and poor surface finish. Choosing the right CNC spindle motor solves these issues and ensures precision machining.
A CNC spindle motor is a high-speed electric motor designed to drive cutting tools in CNC machines, routers, mills, and engraving equipment. It provides stable rotation, precise speed control, and reliable torque, enabling accurate machining, smooth surface finish, and efficient automation across industrial CNC applications.
A spindle motor is the core power unit in any CNC machine. It converts electrical energy into high-speed rotational motion to drive cutting tools such as drills, mills, and engraving bits. Unlike standard motors, a CNC spindle motor is designed for high-speed rotation, low vibration, and precision machining.
Inside the spindle, the motor shaft directly drives the tool holder. Precision bearings, balanced rotor design, and rigid housing ensure minimal runout. Many modern spindle motors integrate with VFD (variable frequency drive) systems to precisely control speed and torque during machining.
Because CNC machining requires accuracy, the spindle motor must maintain consistent rotation under load. This allows the CNC machine to produce smooth surfaces, accurate dimensions, and repeatable results across industrial automation processes.
Different CNC applications require different cooling methods. The two main types of CNC spindle motors are air cooled spindle motor and water cooled spindle motor.
| Type | Cooling Method | Advantages | Typical Use |
|---|---|---|---|
| Air cooled spindle motor | Fan cooling | Easy installation, low maintenance | CNC routers, engraving |
| Water cooled spindle motor | Water circulation | Quiet, stable temperature | Precision CNC machining |
| Built-in spindle motor | Integrated | High rigidity | Machining centers |

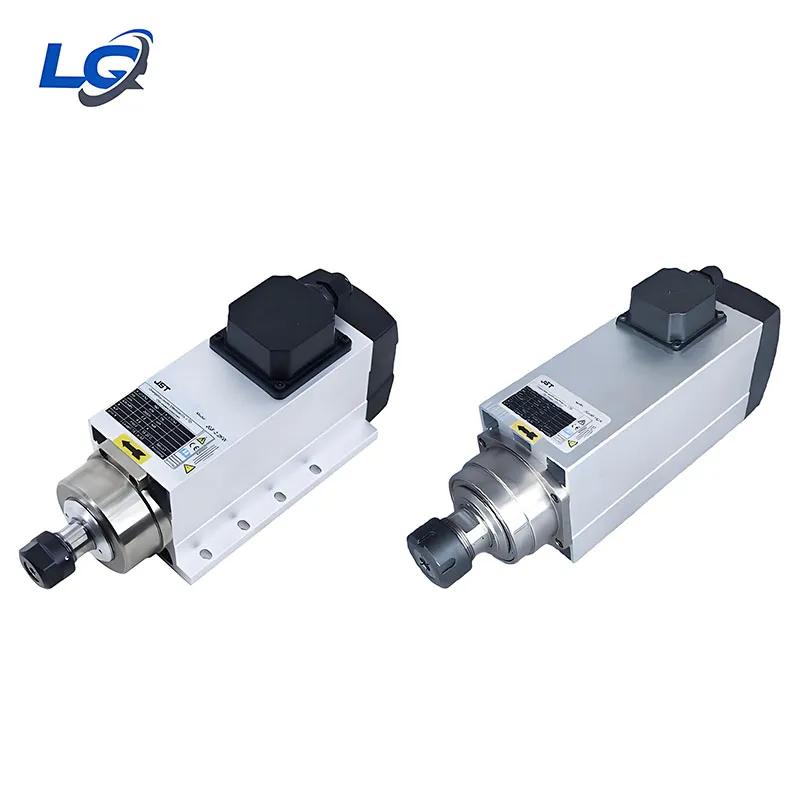

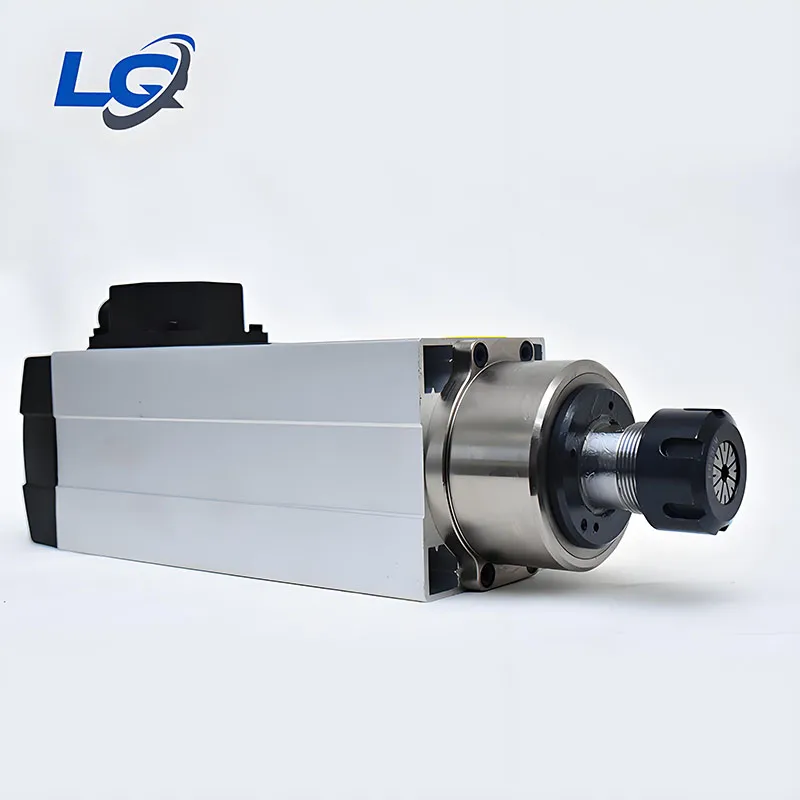

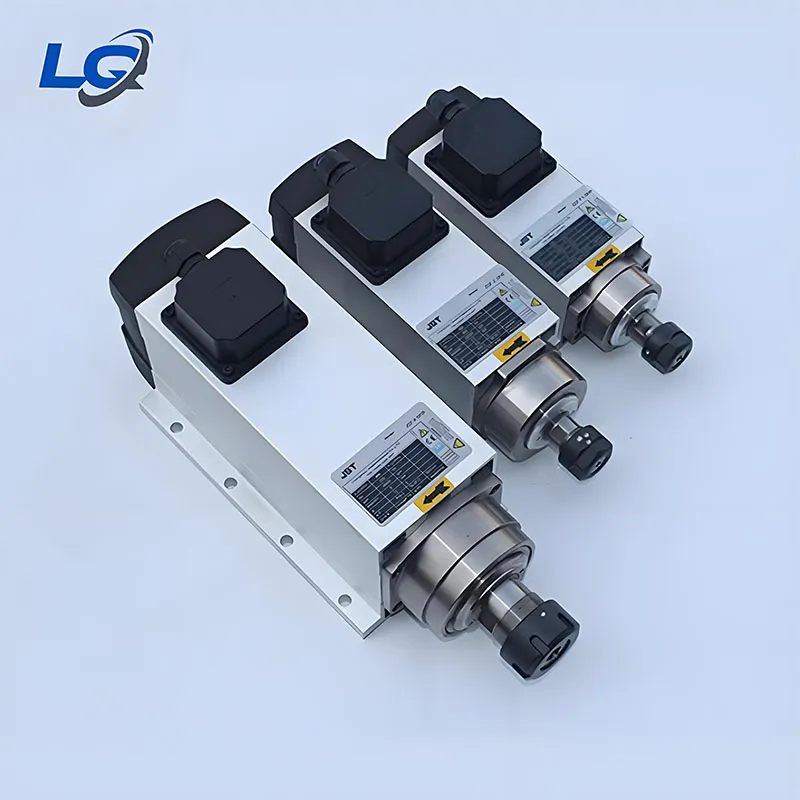

An air cooled CNC spindle motor is common in CNC routers and woodworking machines because it is simple and cost-effective. A water cooled spindle motor provides better thermal stability, making it ideal for long-time machining and metal cutting.
Selecting the right cooling type depends on machine duty cycle, environment, and precision requirements.
Choosing the correct spindle motor depends on machine type, material, and machining process.
Key selection factors:
For light engraving machines, an 800W air cooled spindle motor is sufficient. For CNC routers cutting wood or plastic, 1.5kW or 2.2kW models are common. For metal machining or machining centers, higher-power spindle motors are required.
Matching the spindle motor to the CNC machine ensures optimal performance and long service life.
CNC spindle motors are used across many industrial applications because they provide stable rotational motion and precision machining capability.
In industrial automation, spindle motors are used for drilling, cutting, polishing, and milling processes. Their high-speed capability improves productivity and machining quality.
Because modern manufacturing relies on automation, spindle motors play a key role in CNC production lines and robotic machining systems.
A high-performance spindle motor significantly improves CNC machine performance.
For example, precision spindle motors with balanced rotors and high-quality bearings reduce runout and vibration. This leads to better cutting accuracy and tool life.
What is a spindle motor in CNC machines?
A spindle motor is a high-speed electric motor that rotates cutting tools in CNC machines, enabling machining, drilling, milling, and engraving operations.
What speed should a CNC spindle motor have?
Typical CNC spindle motors operate between 6000 and 24000 rpm. Higher speed is suitable for engraving and light machining, while lower speed with higher torque suits metal cutting.
Which is better: air-cooled or water-cooled spindle motor?
Air-cooled spindle motors are simpler and cheaper, while water-cooled spindle motors offer better thermal stability and precision for long-time machining.
What power spindle motor is best for CNC routers?
Most CNC routers use 1.5kW or 2.2kW spindle motors. Heavy-duty routers may use 3kW or higher.
How long does a CNC spindle motor last?
A high-quality spindle motor can operate thousands of hours if properly cooled and maintained.
Why is spindle motor precision important?
Spindle precision determines machining accuracy, surface finish, and tool life in CNC machines.
A CNC spindle motor is the heart of any CNC machine. It determines machining speed, accuracy, and productivity. Selecting the correct spindle motor ensures stable rotation, precise cutting, and reliable automation performance.
As a China-based manufacturer of CNC motion and transmission components, we design spindle motors and motion solutions to meet the needs of CNC machine builders, automation OEMs, and robotics manufacturers worldwide. Our goal is simple: provide stable, precise, and cost-effective motion power for modern CNC equipment.
If you are developing or upgrading CNC machines, choosing the right spindle motor will directly improve machining quality, efficiency, and reliability.
