Machining Center Tool Setter
This machining center tool setter is a wired contact measuring device installed on the machine table or bed. The cutting tool approaches the contact surface at a controlled speed, triggering an electrical signal that allows the CNC system to record the tool position and calculate the required offset.
Available with different contact diameters, mounting bases, and signal configurations, the tool setter supports automatic tool-length measurement, tool-diameter checking, wear monitoring, and broken-tool detection on CNC machining centers and milling equipment.
Product Introduction
During the measuring cycle, the cutting tool contacts the carbide measuring surface and activates the internal switch. The CNC controller records the axis coordinate and processes the tool-length or diameter compensation according to the machine program.
This contact-based process reduces manual feeler-gauge measurement and trial-cutting procedures, helping improve tool-setting consistency during production, tool replacement, and machine setup. Wear monitoring and broken-tool detection can also be implemented when supported by the controller, wiring, and measurement program.
Product Specification
| Product Name | CNC Machining Center Tool Setter |
| Product Type | Wired contact tool setter |
| Measuring Functions | Tool length, tool diameter, wear, and breakage detection |
| Contact Diameter | Approx. 20 mm, 30 mm, or 50 mm |
| Signal Options | 4-wire normally closed or 6-wire normally open |
| Repeatability | Up to 0.001 mm |
| Protection Rating | IP68 |
| Contact Surface | Carbide contact pad |
| Mounting Type | Fixed table or machine-bed installation |
| Main Applications | CNC machining centers, milling machines, repair and retrofit projects |
| Place of Origin | Shandong, China |
Product Features
Repeatability up to 0.001 mm
The contact mechanism provides repeatable trigger positioning for tool-setting cycles. This supports more consistent tool offsets during batch machining, tool replacement, and periodic tool-condition checks.
Automatic Tool-Length Measurement
The machining center tool setter allows the CNC system to record the tool contact position and calculate the tool-length offset according to the configured macro or measurement program.
Tool-Diameter Checking
The contact pad can support tool-radius or diameter measurement when the machine executes the required side-contact measurement cycle. Actual measuring capability depends on the controller and machine program.
Tool-Wear Monitoring
Periodic measurement allows the CNC system to compare the current tool position with the stored reference. When the measured difference exceeds the programmed tolerance, the controller can generate a warning or compensation command.
Broken-Tool Detection
The tool setting probe can be integrated into an in-process tool-checking routine. If the tool does not contact the setter within the expected position range, the machine program can issue an alarm or stop the cycle.
IP68 Protection
The supplied product information specifies an IP68 protection rating, supporting installation in machining environments where metal chips and cutting fluid may be present. Correct installation and cable sealing remain necessary.
Multiple Contact and Mounting Options
Contact diameters of approximately 20 mm, 30 mm, and 50 mm are shown, together with round and rectangular mounting bases. This gives machine builders and retrofit companies more flexibility when matching available installation space.
Product Application
This machining center tool setter is designed for CNC machining centers, milling machines, multi-tool production lines, and machine retrofit projects. It supports automatic tool-length and diameter measurement, tool-wear monitoring, broken-tool detection, and consistent tool-offset setting during metalworking operations.
-
CNC Milling Machines -
Multi-Tool Machining Operations -
Tool-Wear Monitoring -
Machine Repair and Retrofit Projects
Packing, Storage, Handling and Transportation
Precision electronic machinery refers to various types of high-tech equipment, such as semiconductor devices and scientific instruments. These sophisticated machines demand a high level of precision in their design, construction and operation, making them critical tools in many advanced industries. The use of precision electronic machinery has revolutionized many fields, enabling greater accuracy and efficiency in everything from medical research to manufacturing. As technology continues to advance, the demand for precision electronic machinery will only continue to grow.
Linear guides are an incredibly versatile component that can be incorporated into a wide range of automation equipment, including textile machinery, printing machinery, drug dispensers, and physical therapy machines. Additionally, they can be found in blood testing equipment, airway cleaning equipment, and other similar devices. Because of their high level of precision and reliability, linear guides are an ideal choice for these types of applications, helping to ensure that everything runs smoothly and efficiently. Whether you are looking to automate a new piece of equipment or upgrade an existing one, incorporating HGR linear guides is a smart choice that will pay off in the long run.
-

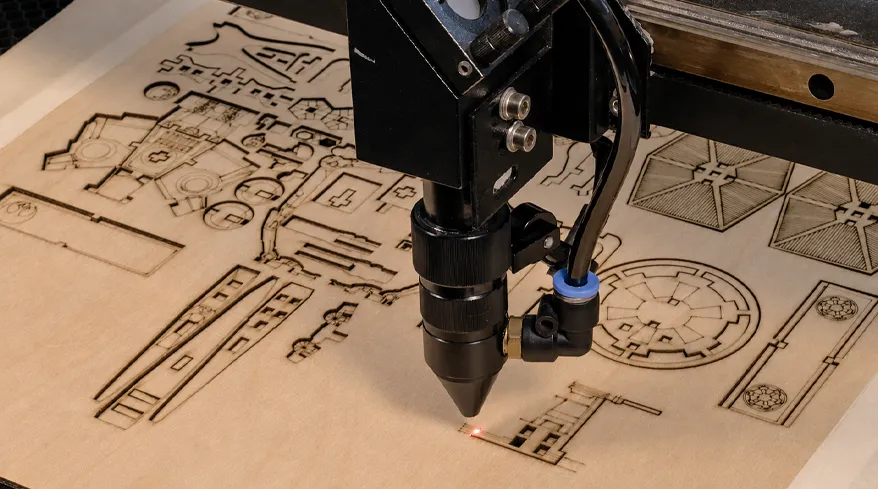

Laser Engraving & Cutting Machines -
